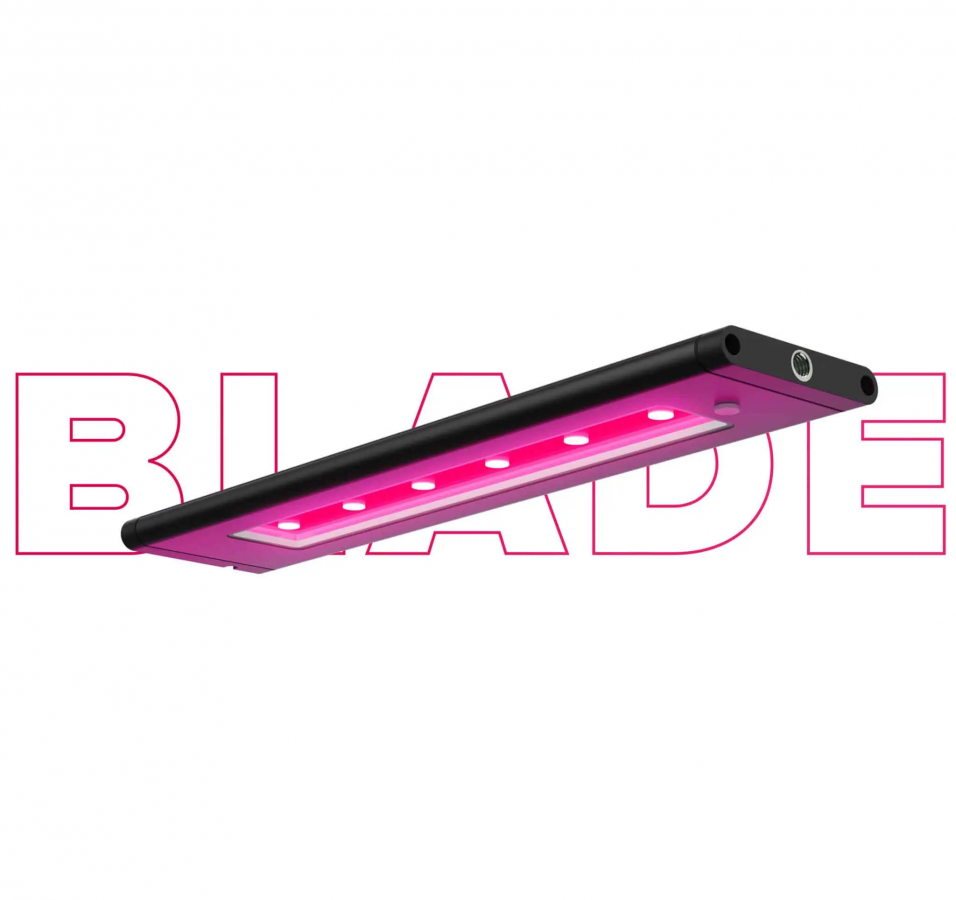

Aqua Illumination Blade Smart LED Refugium

The Blade Refugium is a macroalgae growing machine. Silent, sealed and easily mountable take your biological filtration to the next level with a refugium powered by AI.

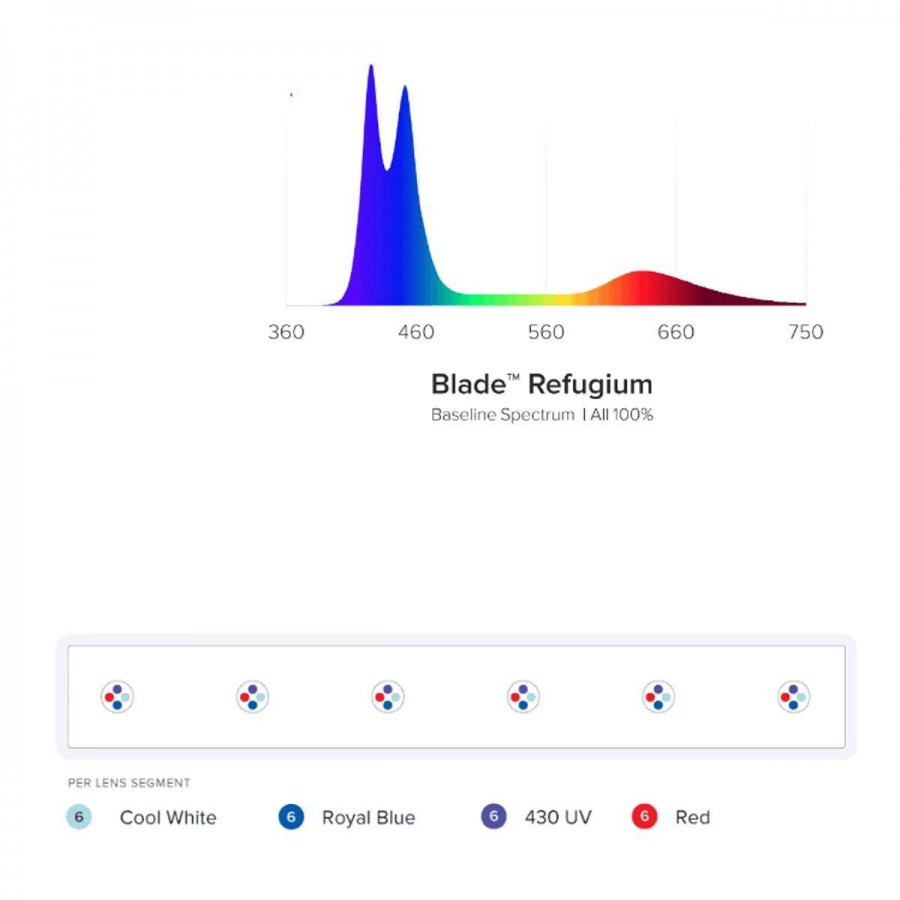

Refugium Spectrum
A hardcore horticultural spectrum of red and blue will not win any beauty contest, it will however, grow macroalgae. Nutrient-consuming macroalgae will flourish under the right conditions and the right lighting. The Blade Refugium delivers this highly targeted spectrum.

LEDs
The AI Blade® Refugium utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.

6 – Red
6 – Royal Blue
6 – Cool White
6 – 430nm

EdgeField™ Optics
Optics are one of the most important components of an advanced lighting system. Edgefield™ technology incorporated in the Blade delivers even PAR, smooth color mixing and exceptional spread.

Edgefield optics, designed exclusively for the Blade, provide an incredible, 95 degree spread while achieving unmatched light mixing along the length of the blade. The specular exit surface presents a crisp and natural shimmer in your aquarium.

Silent Running
The Blade incorporates a highly efficient heat sink design. Passive cooling means no fan and no air movement or fan noise. This makes the Blade ideal for lighting aquariums in living spaces where less noise is a big plus.

Water Resistant
Blade is not only versatile but built to last in the harsh-environment of marine aquariums. Blade meets IP66 standards which indicate the highest protection against particles and a high level of protection against water.

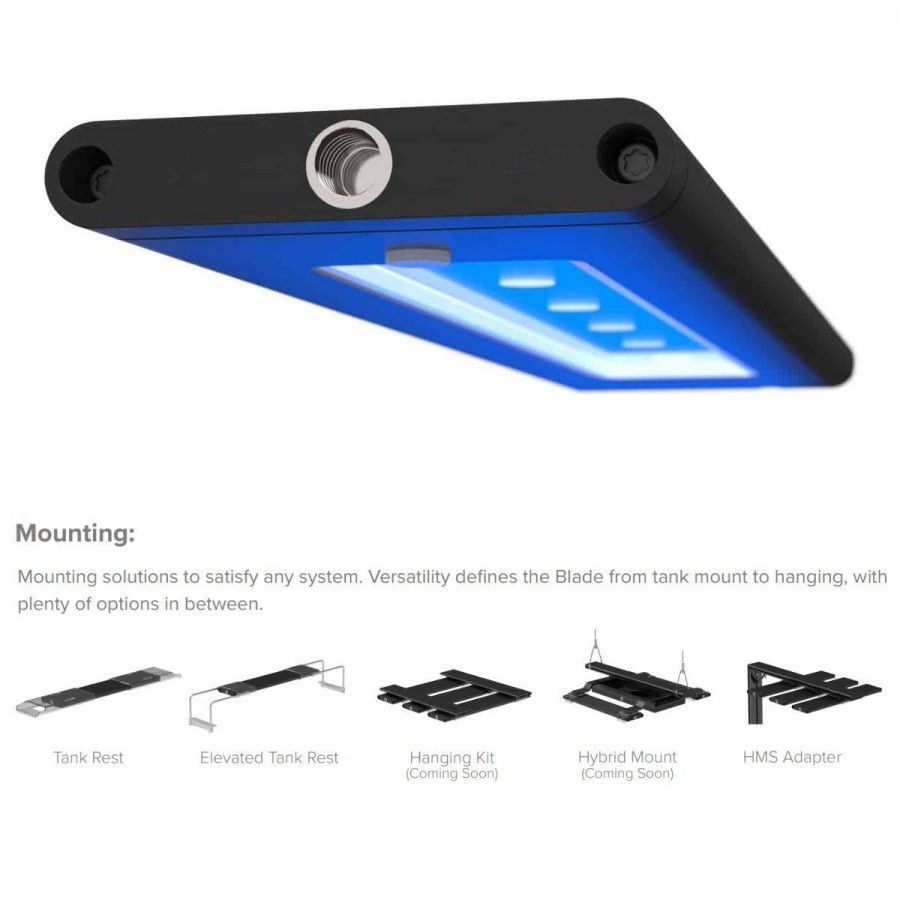

Mounting Included

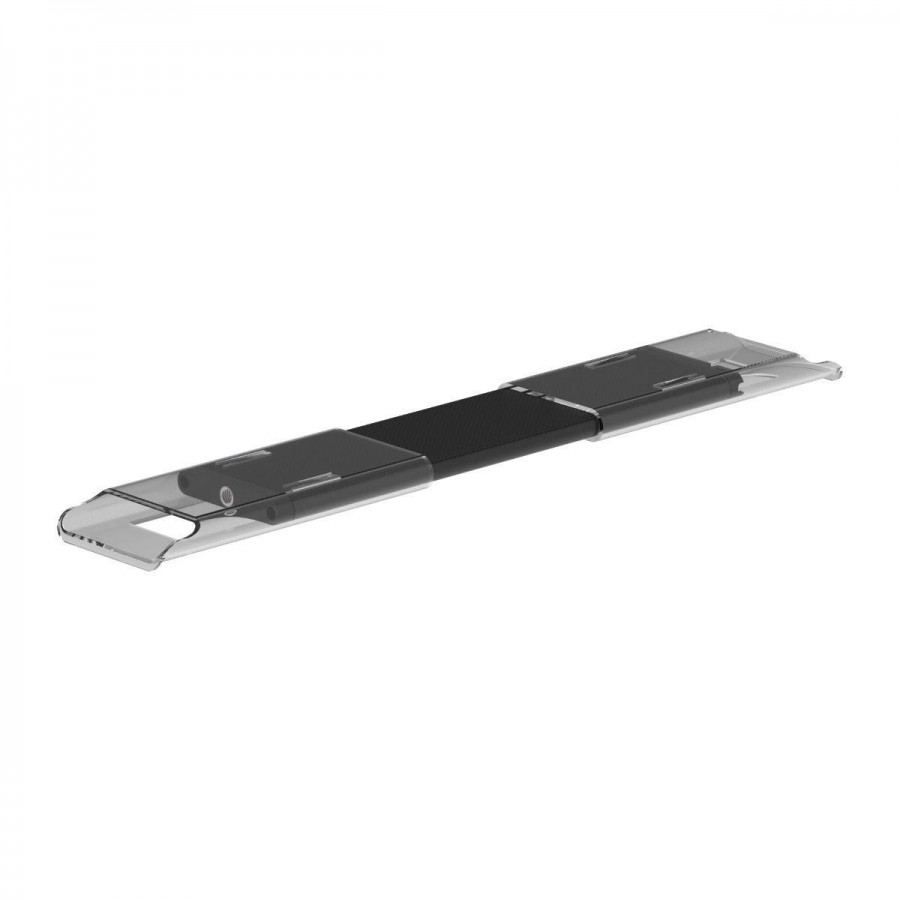

The Blade Refugium includes the Low Profile Tank Rest. The tank rest extends up to 4.5 inches on either side of the blade (for a total of 9 inches).
Different application? No problem, the Blade has many other mounting options available.
M8 Mounting Thread
Want even more mounting options? The Blade includes a M8 mounting thread at each end. The custom mount possibilities are endless.

Simple Built-in Control
All AI devices include smart control standard. Use the myAI® app or Mobius® on any iOS or Android device to easily set up or program your AI equipment.

Technical Specifications
Dimensions
Length  12.1in. (30.7cm)
Width 2.8in. (7cm)
Height 0.7in. (1.6cm)

Power Specifications
Power Consumption 20W at full power
Universal Input Range 100 to 240VAC / 50-60Hz
Cable Length 9.8ft. (3m)
PSU Regulatory Compliance UL, CE & RoHS

What’s in the Box
AI Blade® Refugium
Power Adapter
Blade Tank Rest Mounting Solution
